Dexter 8-259-5 Idler Hub for 2,000 lb to 2,200 lb Axles - 5 on 4-1/2 - 5.5 Inch Hub Flange
Dexter 8-259-5 Idler Hub for 2,000 lb to 2,200 lb Axles - 5 on 4-1/2 - 5.5 Inch Hub Flange
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

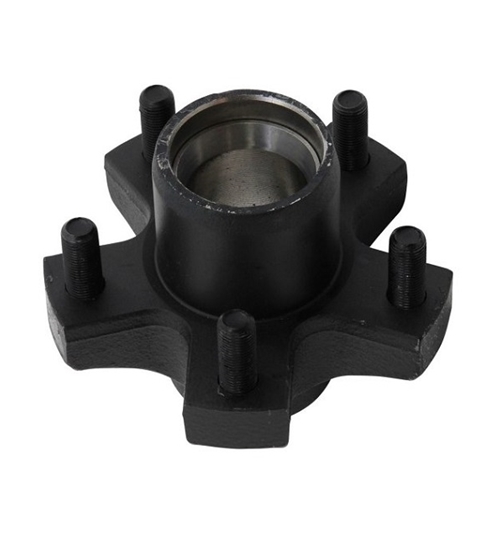

This hub is designed for use with a BT8 1" Spindle or BTR 1-1/16" spindle. Each hub has a capacity of 1K LBs using the L44643 bearings and 1.1K LBs using the L44649 bearings. The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately.

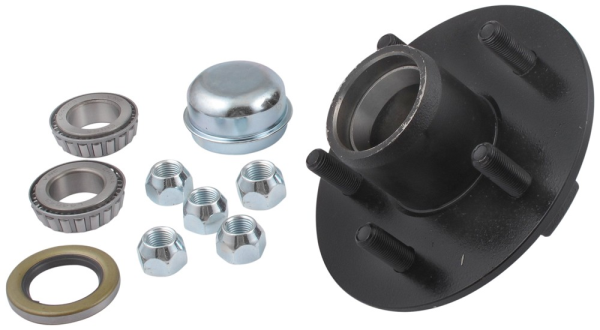

If you want this complete EZ Lube hub assembly with bearings, grease seal, grease cap, lug nuts etc. consider part number 8-259-5UC1-EZ for one hub. Or 8-259-5UC1-EZ x2 for two hubs.
Product Features & Specs
- Hub ONLY! See above links for complete assembly
- 5 on 4.5" Bolt pattern (most common)
- Stud Size: 1/2"
- 1 L44610 Outer Race (Already Pressed In) 1.98" OD
- 1 L44610 Inner Race (Already Pressed In) 1.98" OD
- Uses L44643(1" ID) or L44649(1.063" ID) bearings(sold separately)
- Use with 8-12" wheels
- 4" Overall height
- 5-1/2" Hub Flange diameter
- On 13" - 15" tires, you can use a 6-1/2" hub flange (part # 8-258-5)
If you are running a BTR 1-1/16" axle spindle
Both inner bearing & outer bearing: part # L44649
Races will remain the same.
Single lip grease seal for none EZ-lube: #10-60 1.987" outside diameter 1.5" inside diameter
Double lip grease seal for EZ-lube: #10-10 1.987" outside diameter 1.5" inside diameter
EZ-lube grease cap #21-41-1 1.986"
None EZ-lube grease cap #46749 1.986"
EZ-lube rubber grease cap plug # 85-1
If you are running a BT8 1" axle spindle
Both inner bearing & outer bearing: part # L44643
Races will remain the same.
Single lip grease seal for none EZ-lube: # 34823 1.983" outside diameter 1.249" inside diameter
Double lip grease seal for EZ-lube: # 12192TB 1.983" outside diameter 1.249" inside diameter
EZ-lube grease cap #21-41-1 1.986"
None EZ-lube grease cap #46749 1.986"
EZ-lube rubber grease cap plug # 85-1
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
