Dexter 84550 Idle Axle Hub Only - 5 on 5.0 - L68149/L44649 Bearings - Fits 3,500 Lbs Axles - #84 Spindle
There is no need to worry about the races as they are already pressed into the hub for you. This hub is designed for use with a #84 spindle. Each hub has a capacity of 1,750 lbs. The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately. Kit with hardware is available.

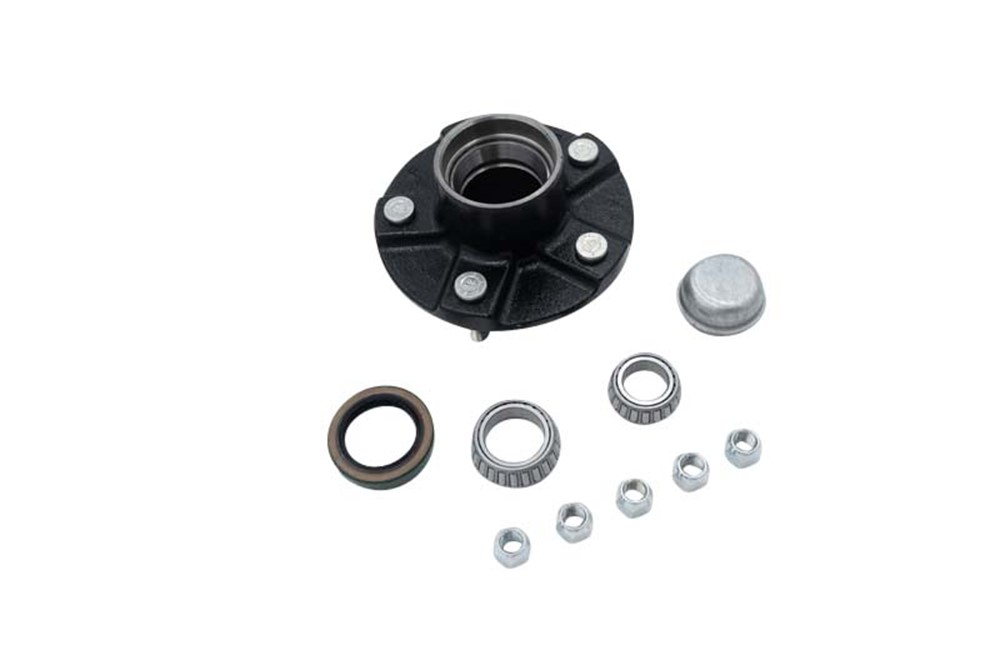

BK2-100 Hub Bearing Kit available here
Dutton Lainson Bearing kit available here
Product Specs
- Trailer Hub only
- L68149 Inner / L44649 Outer Bearings
- Capacity of 1,750 lbs. per each
- Fits #84 Spindle
- Std. Grease Application
- Used on Dexter and most 3,500 lb. axles
- For Idler applications only.
- 1x L44610 Outer Race (Already Pressed In) 1.98" OD
- 1x L68111 Inner Race (Already Pressed In) 2.361" OD
- Uses L68149(1.378" ID) and L44649(1.063 ID) bearings(sold separately)
To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
