Dexter 84550UC1-EZ Complete E-Z Lube Hub Assembly - 5 on 5.0 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle
Dexter 84550UC1-EZ Complete E-Z Lube Hub Assembly - 5 on 5.0 - L68149/L44649 - For 3500 Lbs Axles - Fits #84 Spindle
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Dexter 84550UC1-EZ Complete E-Z Lube Hub Assembly - 5 on 5.0 - L68149/L44649 - For 3500 Lbs Axles with #84 Spindle

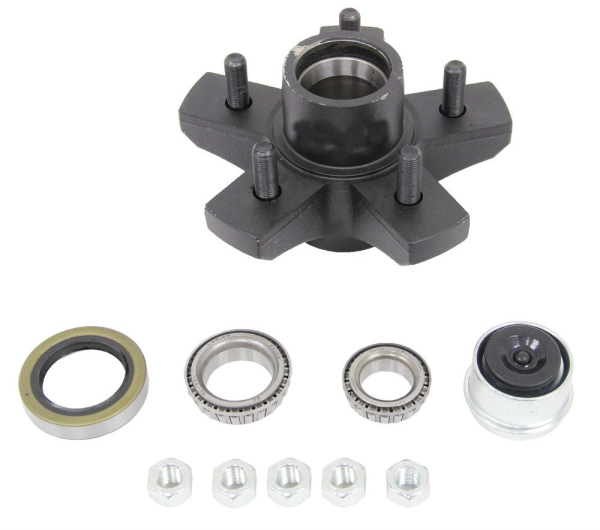

This Dexter complete E-Z Lube Trailer Hub Assembly includes lug nuts, inner bearing (L68149) and race, outer bearing (L44649) and race, grease cap and grease seal. Fits 3,500-lb E-Z-Lube axles. This hub is designed for use with a #84 spindle. Each hub has a capacity of 1,750lbs. Spindle nut and spindle washer sold separately.
Product Specifications
- Application: most 3,500-lb E-Z Lube axles with #84 spindle, including Dexter
- Bolt pattern: 5 on 5"
- Pilot diameter: 2.58"
- Includes bearings, races, seal, E-Z Lube grease cap, wheel bolts and lug nuts
- Bearings:
- Inner bearing: L68149
- Outer bearing: L44649
- E-Z Lube grease cap: 1.986" outer diameter
- Bearings:
- Capacity: 1,750 lbs per hub
Items in Kit
• 1x L68149 Inner Bearing (1.378" ID)
• 1x L44649 Outer Bearing (1.063" ID)
• 1x L44610 Outer Race (Already Pressed In) 1.98" OD
• 1x L68111 Inner Race (Already Pressed In) 2.361" OD
• 1x 10-19 Grease Seal (1.719" x 2.565")
• 1x 21-41-1 Grease Cap (1.986" OD)
• 1x 85-1 Grease Cap Plug
• 5x X1023R Coned Wheel Nuts
• 1x 5 on 5" Hub
• 1,750lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
