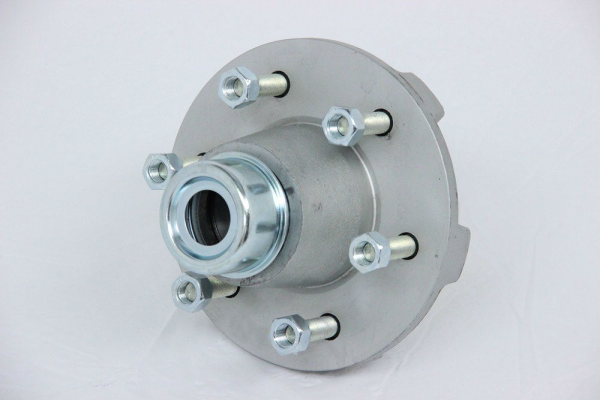

Dexter 8-213-51 GAL-DEX Marine Hub Only - 6 on 5.5 - 25580/15123 - Fits 6000 Lbs Axles - 2.25 Inch Inner Seal
Hub is for use on idler axles. Fits 6,000-lb axles with #42 spindles. Galvanized hub is great for marine use. Inner and outer races included. Inner bearing (25580), outer bearing (15123), grease seal, grease cap, and lug nuts sold separately.
Product Features
- Marine-grade trailer hub fits idler axles
- Includes inner and outer races
- Requires bearings, grease seal, grease cap, and lug nuts (sold separately)
- Zinc plating has a 500-hour salt spray rating
- Ideal for use on a boat or snowmobile trailer
- Durable enough for saltwater applications
Specifications
- Application: 6,000-lb axles
- Bolt pattern: 6 on 5-1/2"
- Wheel studs: 1/2" diameter x 2-1/4" long
- Weight capacity: 3,000 lbs
Bearing, Race, and Seal Information
- Bearings (sold separately)
- Inner bearing: 25580 (1.75" inner diameter)
- Outer bearing: 15123 (1.25" inner diameter)
- Races (included)
- Inner race: 25520
- Outer race: 15245
- Grease seal (sold separately): 10-10 or 10-36
Dexter Trailer Hubs and Drums - 8-213-51
- 6 on 5-1/2 Inch
- For 6000 lbs Axles
- Hub
- 14-1/2 Inch Wheel
- 15 Inch Wheel
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- Standard
- 1/2 Inch Stud
- 15123
- 25580
- Dexter
Corrosion Resistance for Marine Use
This trailer hub has a zinc coating that resists corrosion, making it ideal for use on your boat or snowmobile trailer. All GAL-DEX hubs undergo a test in which they are sprayed with a 5-percent salt solution to determine corrosion resistance over time. These products are able to withstand 500 hours of constant exposure to the saltwater mist. This 500-hour salt spray rating indicates that a product is not only durable enough to last in freshwater environments, but it can also be used on trailers that come into contact with saltwater.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
