Dexter 8-213-5UC1-EZ Complete Painted E-Z Lube Hub Assembly - 6 on 5.5 - 25580/LM67048 - For 5.2K/6K Lbs Axles - 2.125 Inch Inner Seal
Dexter 8-213-5UC1-EZ Complete Painted E-Z Lube Hub Assembly - 6 on 5.5 - 25580/LM67048 - For 5.2K/6K Lbs Axles - 2.125 Inch Inner Seal
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
Dexter 8-213-5UC1-EZ Complete Painted E-Z Lube Hub Assembly - 6 on 5.5 - 25580/LM67048 - For 5.2K/6K Lbs Axles - 2.125 Inch Inner Seal

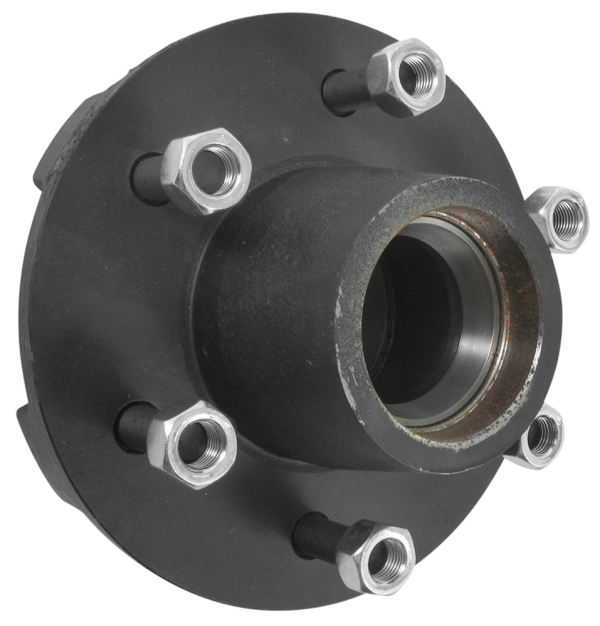

This Trailer hub includes lug nuts, inner bearing (25580) and race, outer bearing (LM67048) and race, E-Z Lube grease cap with plug and grease seal. Fits 5,200-lb. This hub is designed for use with a #42 spindle. Each hub has a capacity of 2,600lbs. Spindle nut and spindle washer sold separately.
Product Features
- Trailer hub assembly fits idler axles
- Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
- E-Z Lube-compatible grease cap makes lubricating bearings fast and easy
- Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
- Sturdy iron construction
Product Specifications
- Application: 5,200-lb E-Z Lube trailer axles
- Wheel size: 14" to 16-1/2"
- Bolt pattern: 6 on 5-1/2"
- Grease cap flange diameter: 2.44"
- Wheel stud diameter: 1/2"
- Weight capacity: 2,600 lbs per hub
Bearing, Race, & Seal Information
- Bearings (included)
- Inner bearing: 25580 (1.75" inner diameter)
- Outer bearing: LM67048 (1.25" inner diameter)
- Races (included)
- Inner race: 25520
- Outer race: LM67010
- Grease seal (included): 10-10
- Inner diameter: 2.125"
- Outer diameter: 3.376"
E-Z Lube-Compatible Hub for Simple Lubrication
The grease cap on this hub is specially designed to work with your Dexter E-Z Lube axle to make lubricating bearings quick and easy. Just remove the plug on the grease cap, attach a grease gun to the zerk fitting on the end of the spindle, and inject the grease. It will flow easily to both inner and outer bearings. Not only does this make lubricating the bearings easy, but it also helps to prevent corrosion of the hub. This is because you can lubricate the bearings without the mess of taking apart the entire assembly.

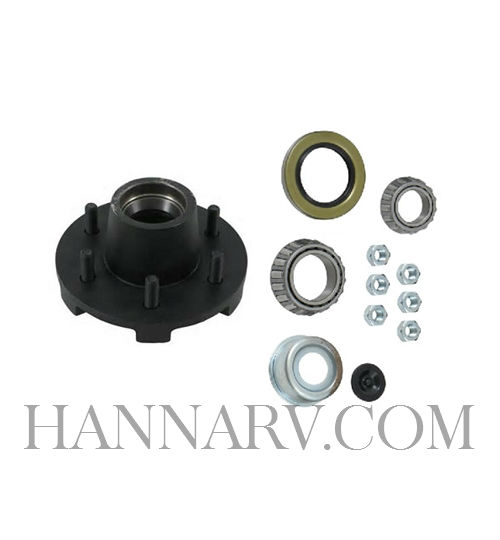

Items in Kit
• 1x 25580 Inner Bearing (1.75" ID)
• 1x LM67048 Outer Bearing (1.25" ID)
• 1x 25520 Inner Race (Already Pressed In) 3.265"
• 1x LM67010 Outer Race (Already Pressed In) 2.328"
• 1x 10-36 Grease Seal (2.25" x 3.376")
• 1x 21-42-1 EZ Lube Grease Cap (2.44")
• 1x 85-1 Grease Cap Plug
• 6x X1023R Coned Wheel Nuts
• 1x 6 on 5.5" Hub
• 2,600lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
Dexter Trailer Hubs and Drums - 8-213-5UC1-EZ
- 6 on 5-1/2 Inch
- For 5200 lbs Axles
- Hub
- 14-1/2 Inch Wheel
- 15 Inch Wheel
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- EZ Lube
- LM67048
- 25580
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
