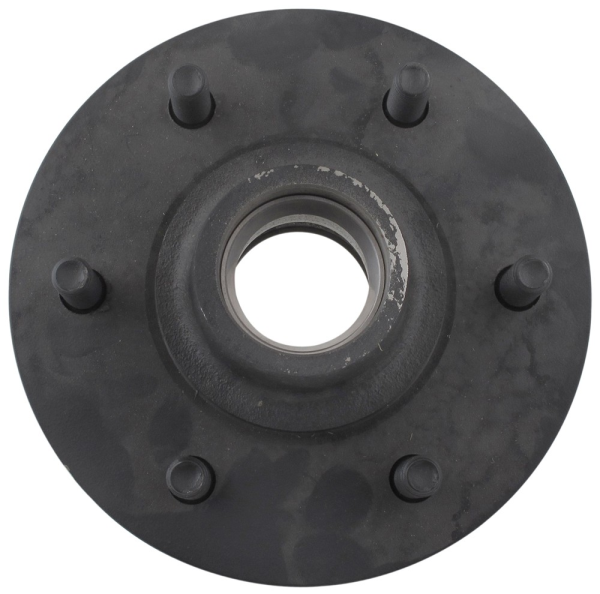

Dexter 84655UC1-EZ Complete E-Z Lube Hub Assembly - 6 on 5.5 - L68149/L44649 - For 3,500 Lbs E-Z Lube Axles with #84 Spindle
Hub is designed for use on trailer idler axles. Fits 3,500-lb E-Z Lube axles with #84 spindles. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included. Each Hub has a 1,750lb capacity. Spindle nut and spindle washer sold separately.
Product Features
- Trailer hub assembly fits idler axles
- Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included
- E-Z Lube-compatible grease cap makes lubricating bearings fast and easy
- Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
- Sturdy iron construction
- Hub and drum are made in the USA
Product Specifications
- Application: 3,500-lb E-Z Lube trailer axles with #84 spindles
- Wheel size: 14-1/2" to 16-1/2"
- Bolt pattern: 6 on 5-1/2"
- Grease cap flange diameter: 1.986"
- Wheel bolt diameter: 1/2"
- Weight capacity: 1,750 lbs per hub
Bearing, Race, & Seal Information
- Bearings (included)
- Inner bearing: L68149 (1.378" inner diameter)
- Outer bearing: L44649 (1.063" inner diameter)
- Races (included)
- Inner race: L68111
- Outer race: L44610
- Grease seal (included): 58846
- Inner diameter: 1.719"
- Outer diameter: 2.565"
E-Z Lube-Compatible Hub for Simple Lubrication
The grease cap on this hub is specially designed to work with your Dexter E-Z Lube axle to make lubricating bearings quick and easy. Just remove the plug on the grease cap, attach a grease gun to the zerk fitting on the end of the spindle, and inject the grease. It will flow easily to both inner and outer bearings. Not only does this make lubricating the bearings easy, but it also helps to prevent corrosion of the hub. This is because you can lubricate the bearings without the mess of taking apart the entire assembly.

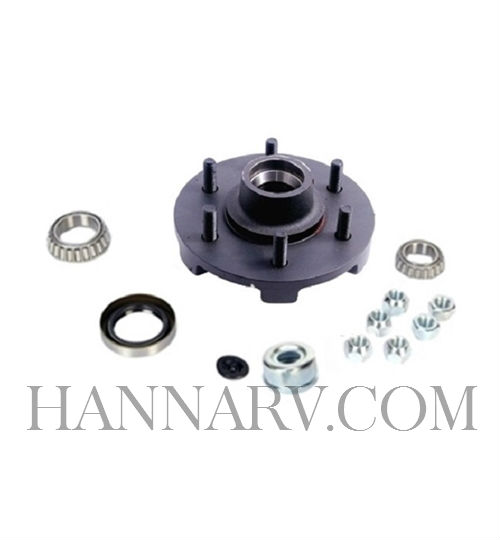

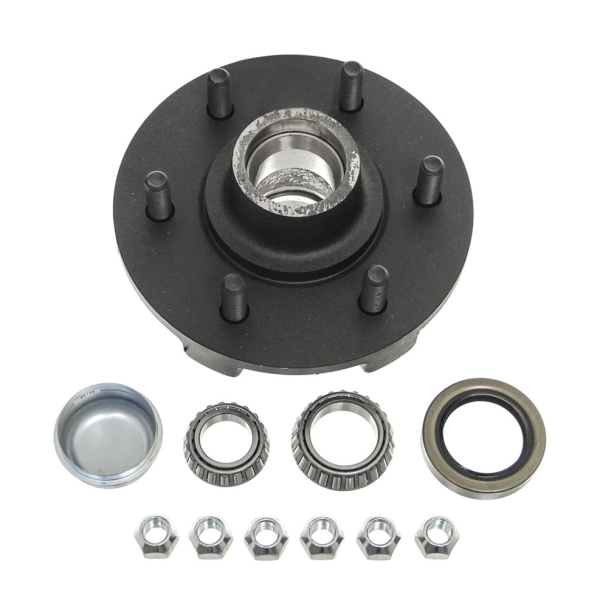

Items in Kit
• 1 L68149 Inner Bearing (1.378" ID)
• 1 L44649 Outer Bearing (1.063" ID)
• 1 L44610 Outer Race (Already Pressed In) 1.98" OD
• 1 L68111 Inner Race (Already Pressed In) 2.361" OD)
• 1 10-19 Grease Seal (1.719" x 2.565")
• 1 21-41-1 Grease Cap (1.986" OD)
• 1 85-1 Grease Cap Plug
• 5 X1023R Coned Wheel Nuts
• 1 6 on 5.5" Hub
• 1,750lb Capacity Per Hub
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
Dexter Trailer Hubs and Drums - 84655UC1-EZ
- 6 on 5-1/2 Inch
- For 3500 lbs Axles
- Hub
- 14-1/2 Inch Wheel
- 15 Inch Wheel
- 16 Inch Wheel
- 16-1/2 Inch Wheel
- EZ Lube
- 1/2 Inch Stud
- L44649
- L68149
- Dexter
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
