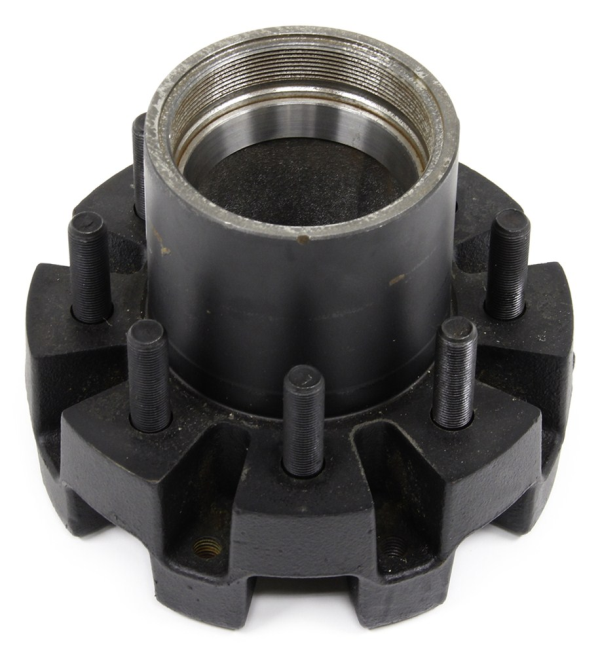

Dexter 8-214-5 Oil Bath Hub Only - 8 on 6.5 - 395S/387A - Fits Dexter 10K Axles - 12.25 x 4 Inch Drum

Brands:
Product Number: RED-8-214-5
Vendor Number: 8-214-5
$299.95 $249.99

Dexter 8-214-5 Oil Bath Hub Only - 8 on 6.5 - 395S/387A - Fits Dexter 10K Axles - 12.25 x 4 Inch Drum

Product Number: RED-8-214-5
Vendor Number: 8-214-5
$299.95 $249.99 You Save $49.96 (16.7%)
Adding this item to your cart will qualify your order for US domestic

QTY:

Dexter 8-214-5 Oil Bath Hub Only - 8 on 6.5 - 395S/387A - Fits Dexter 10K Axles - 12.25 x 4 Inch Drum

Hub is designed for use on trailer idler axles. Fits 10,000-lb axles that require a 3-1/4" inner diameter seal. Inner bearing (395S) and race, outer bearing (387A) and race, oil seal (10-56), retaining ring (33-52-1), and lug nuts (6-109) are sold separately. Trailer hub includes wheel bolts and races. Fits 10,000-lb axles.



Product Features

  • Trailer hub assembly fits 10,000-lb Dexter idler axles
    • Fits 12-1/4" diameter x 4" wide drums
    • Fits Dexter 10k heavy duty axles that use 395S (2.625" ID) and 387A (2.25" ID) bearings
  • Bearings, races, seal, oil cap, and lug nuts are sold separately
  • 9-27-1(12-1/4" x 4") drum and 7-244 mounting bolts are sold separately



Product Specifications

  • Application: 10,000-lb trailer axles requiring 3-1/4" inner diameter oil seal
  • Bolt pattern: 8 on 6-1/2"
  • Wheel stud dimensions: 5/8" diameter x 1-1/16" long
  • Grease cap flange diameter: 3.5"
  • Weight capacity: 5,000 lbs per hub



Bearing, Race, & Seal Information

  • Bearings (sold separately)
    • Inner bearing: 395S (2.625" inner diameter)
    • Outer bearing: 387A (2.250" inner diameter)
  • Races (sold separately)
    • Inner race: 394A
    • Outer race: 382A
  • Oil seal (sold separately): 10-56
    • Inner diameter: 3.125"
    • Outer diameter: 4.500"



To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.



Dexter Trailer Hubs and Drums - 8-214-5

  • 8 on 6-1/2 Inch
  • For 10000 lbs Axles
  • Hub
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel
  • 17 Inch Wheel
  • 17-1/2 Inch Wheel
  • Standard
  • 5/8 Inch Stud
  • 387A
  • 395S
  • Dexter







Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
