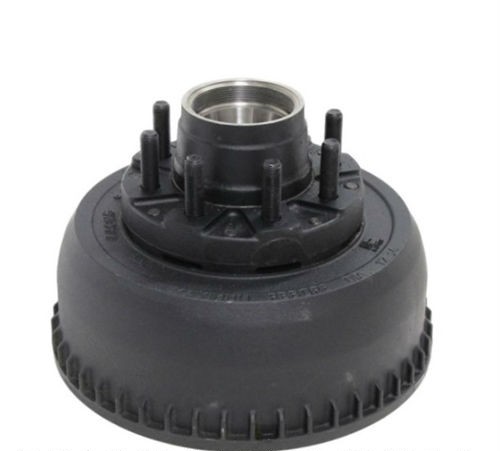

Dexter 8-430-5 Oil Bath Hub and Drum Only for 9-10K Dexter Axles - 5,000 lb Capacity

Brands:
Product Number: RED-8-430-5
Vendor Number: 8-430-5
$527.95 $469.99

Dexter 8-430-5 Oil Bath Hub and Drum Only for 9-10K Dexter Axles - 5,000 lb Capacity

Product Number: RED-8-430-5
Vendor Number: 8-430-5
$527.95 $469.99 You Save $57.96 (11.0%)
Adding this item to your cart will qualify your order for US domestic

QTY:

This hub is for use with 9K to 10K GD axle spindles. Each hub has a capacity if 5,000 lbs. Comes with 5/8" studs. This Hub is designed for 9K-10K GD Dexter axles made after July of 2009 and 9K Dexter axles made after October 1989.


Items included

  • (1) 8 on 6.5" Hub only (5,000 lb capacity per hub)
  • (1) 12-1/4" x 3-3/8" Drum Installed
  • (1) 25520 Outer Race (Already Pressed In) 3.265" OD
  • (1) 382A Inner Race (Already Pressed In) 3.813" OD
  • 5/8" Wheel Studs



Items NOT included

  • (1) 387A Inner Bearing (2.25" ID)
  • (1) 25580 Outer Bearing (1.75" ID)
  • (1) 10-51 Oil Seal (2.875" x 3.88")
  • (1) 21-88 Oil Cap
  • (1) 46-32 EZ Oil Cap Plug
  • (8) 6-109 Coned Wheel Nuts
  • (1) 33-52-1 Wheel Retaining Ring



Prop. 65 Warning for California Residents

WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Side

Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
