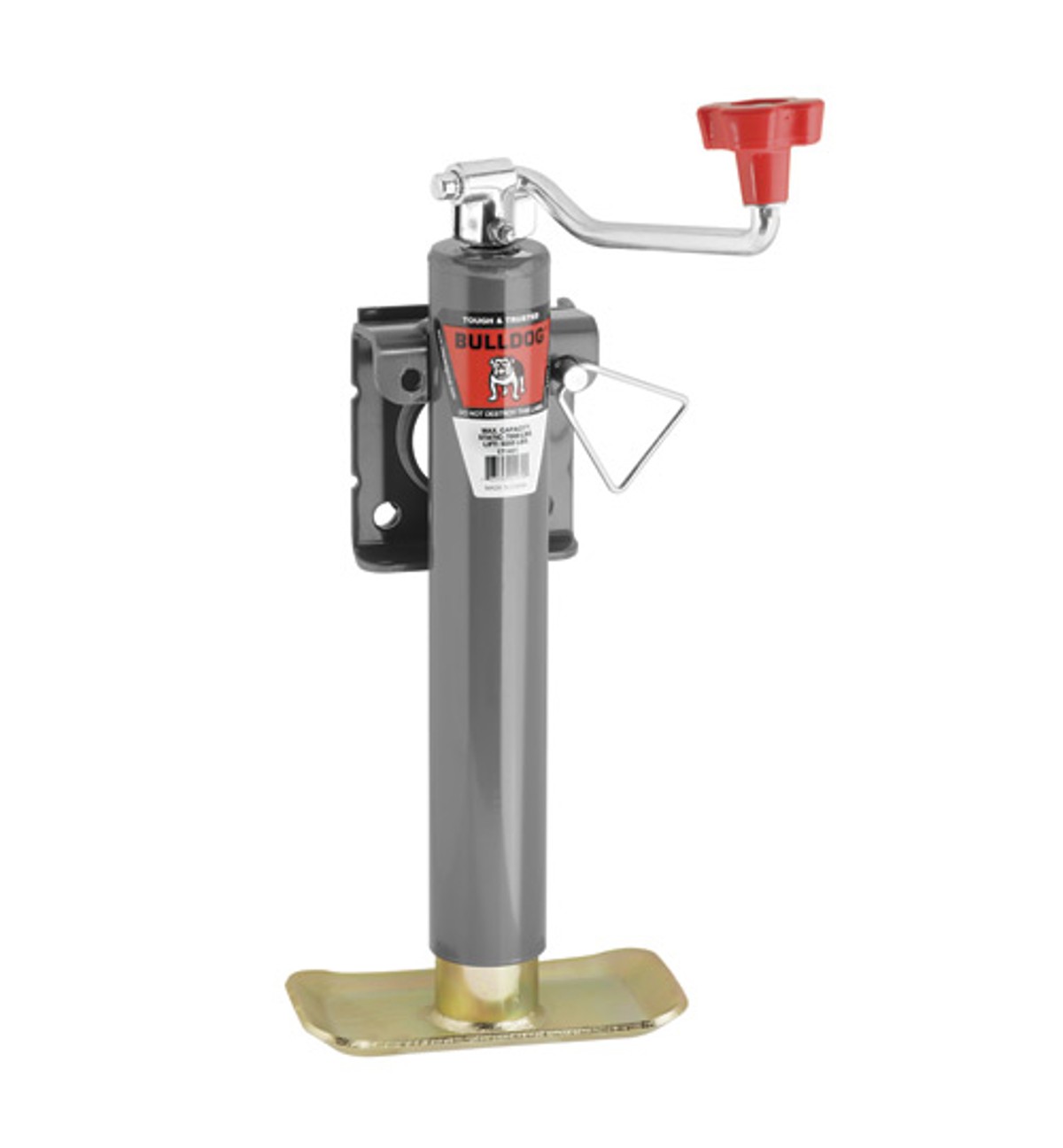

Bulldog 171401 Topwind Swivel Tongue Jack - 5000 Lbs - 10 Inch Lift - 11.25 Inch Bracket Height
Weld on the assembled L-bend swivel bracket and easily swing this jack up for travel and down for use. Jack has 11-1/4" retracted height and measures 4" from mounting bracket to top, excluding handle. Includes plunger pin and footplate.
Features:
- Dependable jack is recognized as industry standard for agricultural and commercial applications
- ASABE compliant
- Convenient, spring-loaded, plunger-pin swivel feature
- Swing up to stow parallel to tongue for travel
- Move back into upright position for use
- Precision-fitted parts provide exceptional stability and reliability
- Topwind handle has smooth, ergonomic design for easy cranking
- Outer tube is gray-paint finished
- Inner tube is zinc plated
- Weld-on, L-bend mounting bracket comes assembled
- Footplate included
Specs:
- Bracket height:
- 11-1/4" Retracted
- 21-1/4" Extended
- Lift: 10"
- Clearance: 4" from mounting bracket to top of jack
- Inner tube diameter: 2"
- Outer tube diameter: 2-1/4"
- Handle radius: 6-11/16"
- Plunger pin diameter: 1/2"
- Lift capacity: 5,000 lbs
- Limited 5-year warranty
(A) Retracted=11.25"
(B) Extended=21.25"
(C) Clearance=4"
