Shorelander TA0270-16 Roller Load Guides For 2 X 3 Frame - Quick Detach Soft Tube Style-Textured Matte Black

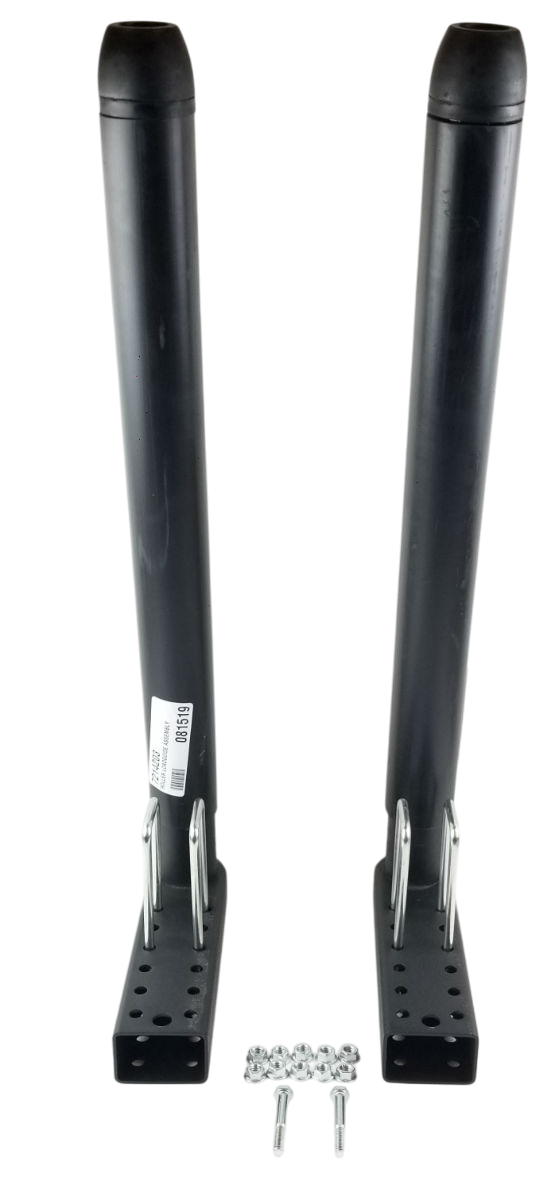

This listing is for one Shorelander TA0270-16 Roller Load Guide Kit. It is made for Shorelander trailers with 2 X 3 Frames.

Color: Textured Matte Black

Installation Instructions:

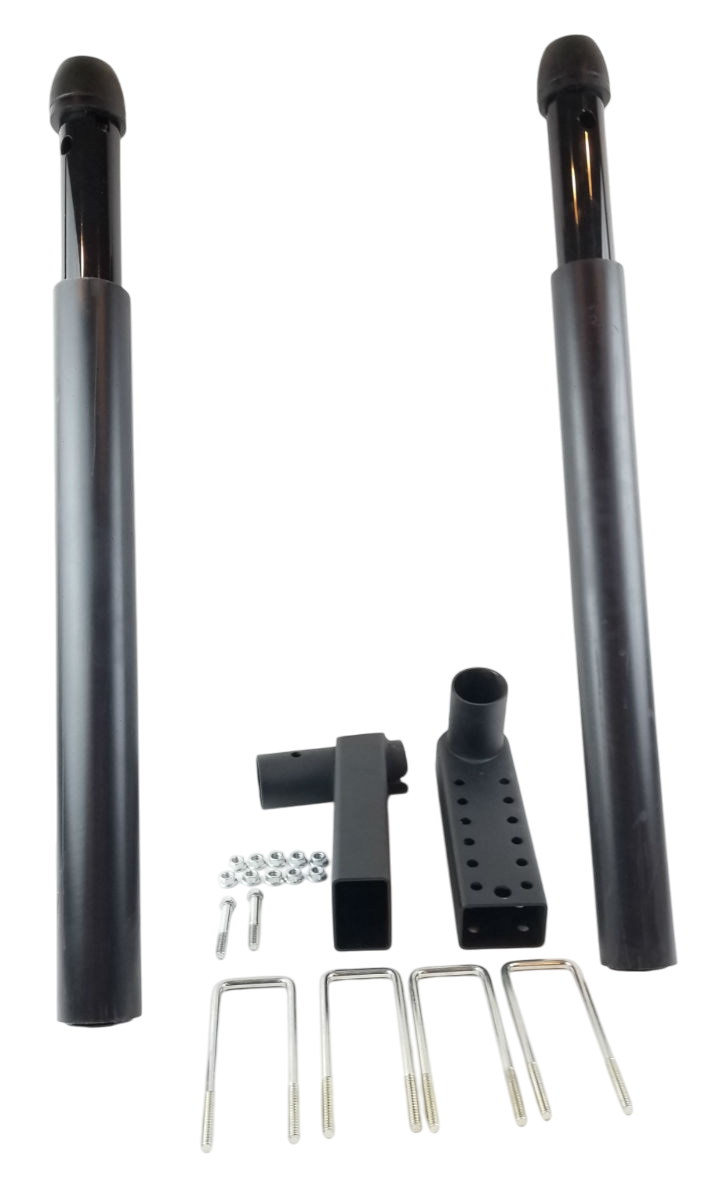

1. Open hardware box and bag and sort parts.

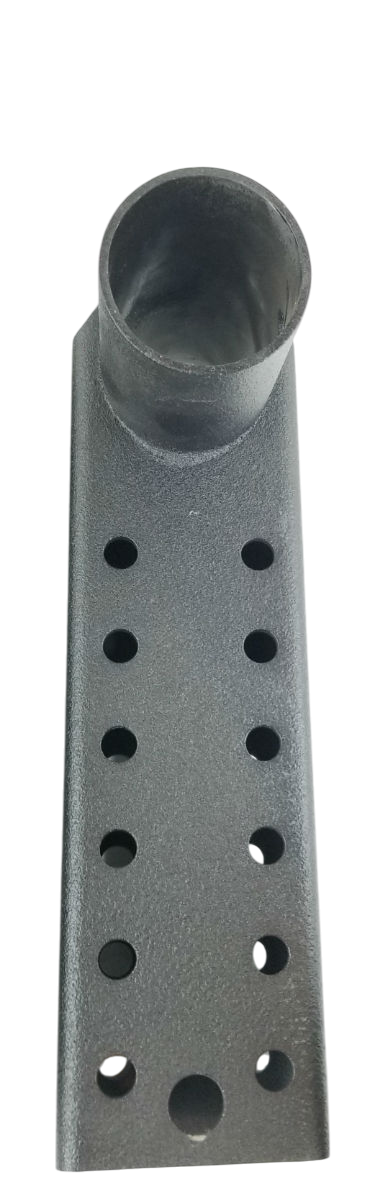

2. The recommended mounting of the loadguide is to the bottom side of the frame. Place square u-bolts over the side frame and through the holes in the adjustable roller loadguide weldment at the width desired and secure with flange locknuts. Do not tighten at this time.

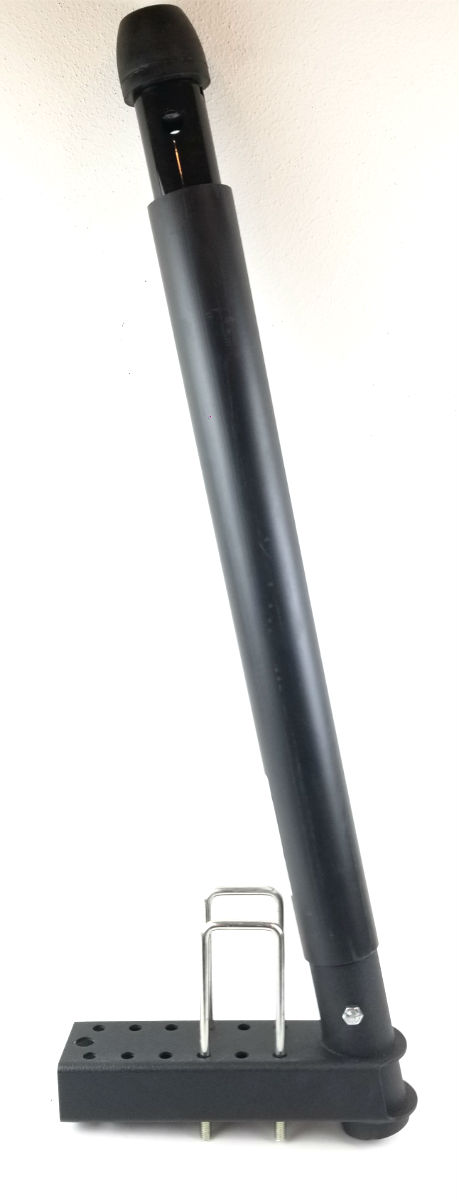

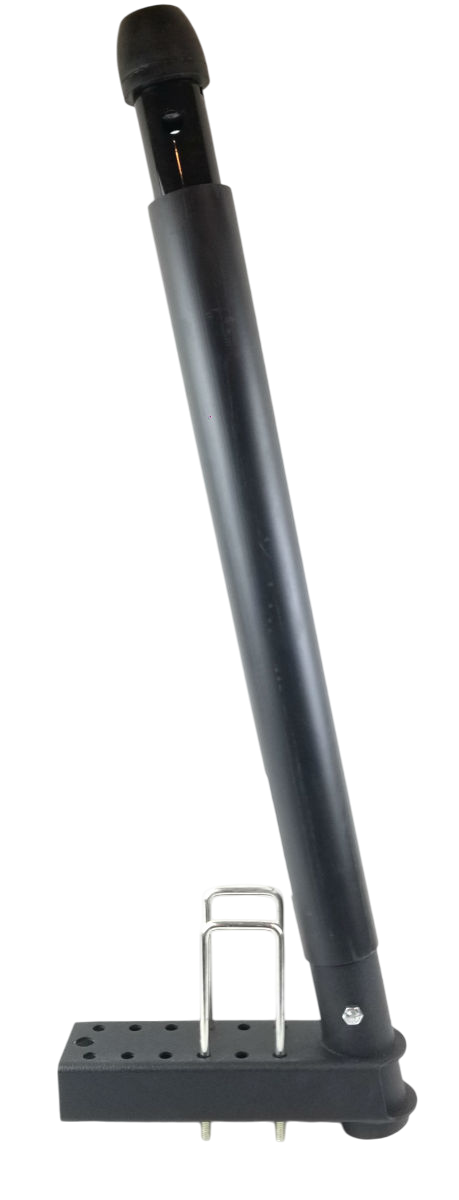

3. Slide the roller load guide assembly into the adjustable roller loadguide weldment. Insert the hex bolt through the hole in the tube and the corresponding hole in the load guide, and out the hole in the tube. Secure with the flange locknut. Do not tighten at this time.
4. Repeat on the other side of the trailer.
5. When complete, tighten all hardware.

A message directly from Shoreland’r:

Having a problem? Needing technical assistance? Missing Parts?

Don’t contact the store!

Contact our technical service department.

Call: (800) 859-3028 8 AM to 5 PM CST

E-Mail: https://www.shorelandr.com/contact-us/

Here at Hanna Trailer Supply, we are unable to look up parts diagrams for many older Shoreland’r trailers. Shoreland’r has access to much more information on parts and accessories than we have here.
