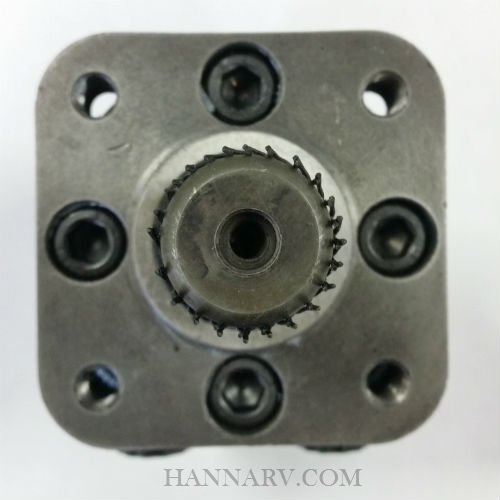

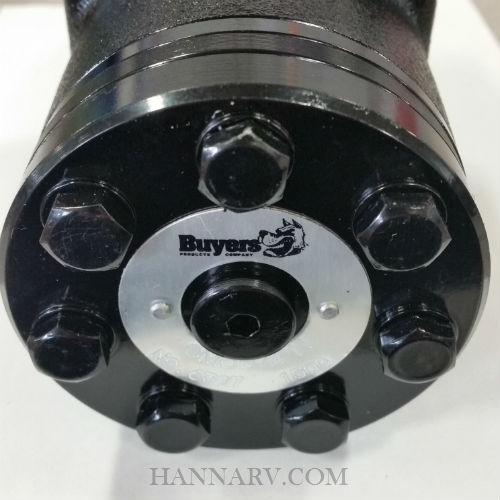

Buyers CM004PH HydraStar Hydraulic Salt Spreader Spinner Motor with Cross Drilled Shaft - Replaces Henderson Meyer 60324
Buyers CM004PH HydraStar Hydraulic Salt Spreader Spinner Motor with Cross Drilled Shaft - Replaces Henderson Meyer 60324
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
HydraStar® motors are economical, efficient, small, compact, and powerful. They are designed for medium-duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, they have a wide variety of mounting flanges with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port which all provide design flexibility. The direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor and equipment can be driven direct which helps eliminate costly mechanical components.
Product Features and Specs
- Displ. cm3/r [in3/r]: 46 [2.8]
- Max Speed (RPM) @ Continuous Flow: 969
- FLOW LPM [GPM]
- Continuous: 45 [12]
- Intermittent: 53 [14]
- Torque LPM [lb-in]
- Continuous: 73 [650]
- Intermittent: 99 [876]
- Min. Starting Torque Nm [lb-in]
- @ Cont. Pressure: 59 [520]
- @ Int. Pressure: 82 [720]
- Difference between inlet and outlet port
- Continuous: 124 [1800]
- Intermittent: 165 [2400]
- Weight: 8.00 lb
- Replaces: Henderson 60324, Meyer 60324
