Buyers CM074P HydraStar Hydraulic Salt Spreader Direct Drive Auger Motor (4 Bolt 17.9 CIPR) - Replaces 101-1007, 462L, 60295, 62452, 04101-042-00
Buyers CM074P HydraStar Hydraulic Salt Spreader Direct Drive Auger Motor (4 Bolt 17.9 CIPR) - Replaces 101-1007, 462L, 60295, 62452, 04101-042-00
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.

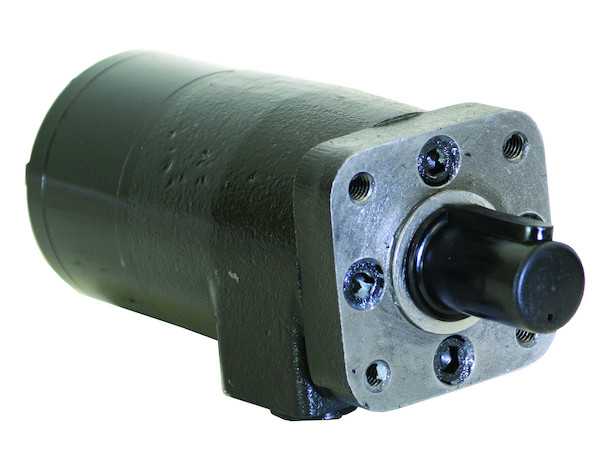

This item is a HydraStar Hydraulic Direct Drive Auger Motor for use with your choice of salt spreader vehicles.
HydraStar® motors are economical, efficient, small, compact, and powerful. They are designed for medium-duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, they have a wide variety of mounting flanges with a 1 inch diameter straight shaft, woodruff keyway, and 1/2" NPT port which all provide design flexibility. The direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor and equipment can be driven direct which helps eliminate costly mechanical components.
Product Features and Specs
- Displace cm3/r [in3/r]: 293 [17.9]
- Max Speed (RPM) @ Continuous Flow: 192
- FLOW LPM [GPM]
- Continuous: 57 [15]
- Intermittent: 76 [20]
- Torque LPM [lb-in]
- Continuous: 351 [3110]
- Intermittent: 466 [4121]
- Min. Starting Torque Nm [lb-in]
- @ Cont. Pressure: 282 [2500]
- @ Int. Pressure: 388 [3430]
- Difference between inlet and outlet port
- Continuous: 93 [1350]
- Intermittent: 124 [1800]
Cross over list (part numbers that this part replaces):
- Charlynn #: 101-1007 with 17.9 Displace
- TRW Ross #: MG-18-13-10 with 18.0 Displace
- Prince Adan #: ADM3004RP with 17.9 Displace
- Orbmark #: HD124W4FSWP with 17.9 Displace
- White #: RS-18-0301 with 18.0 Displace
