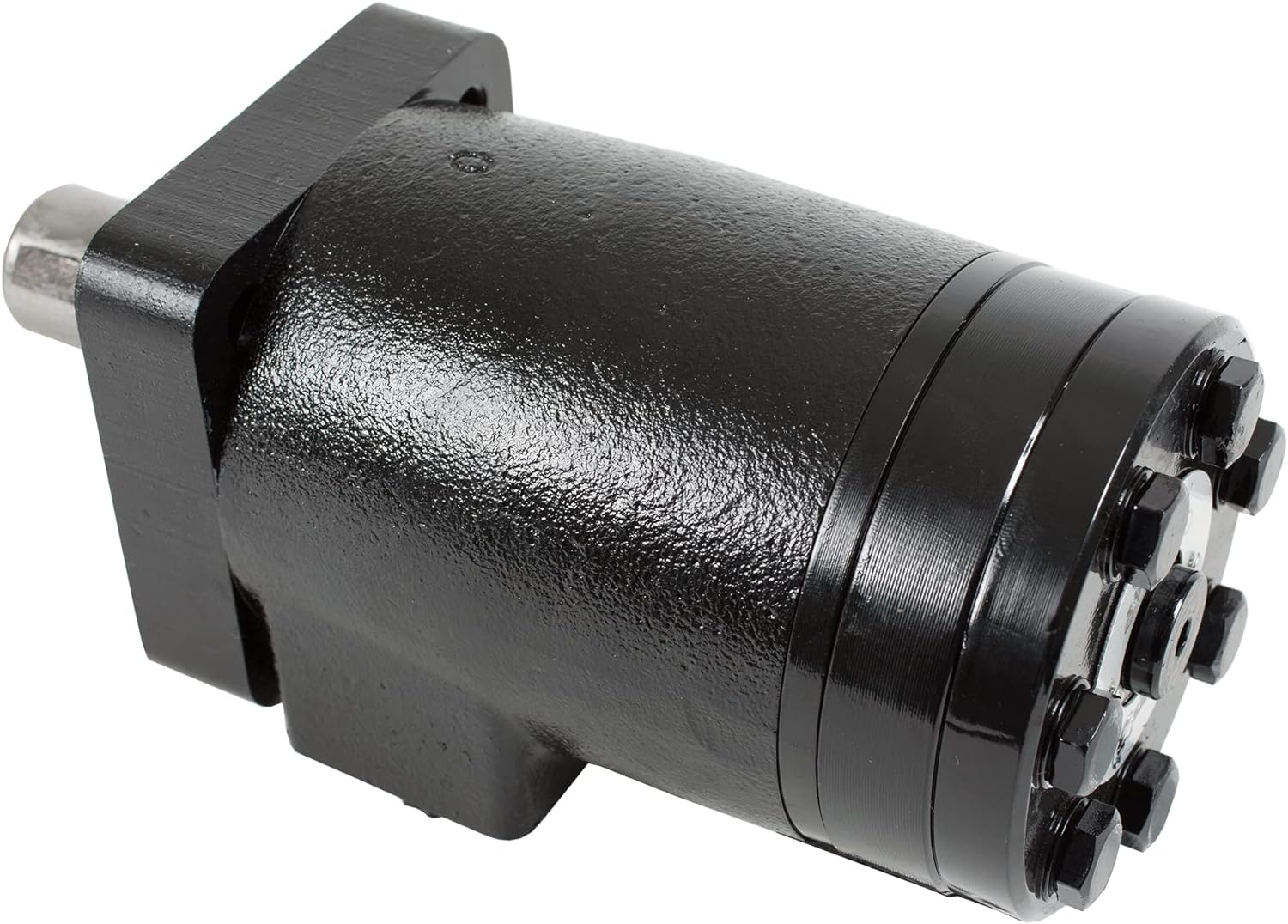

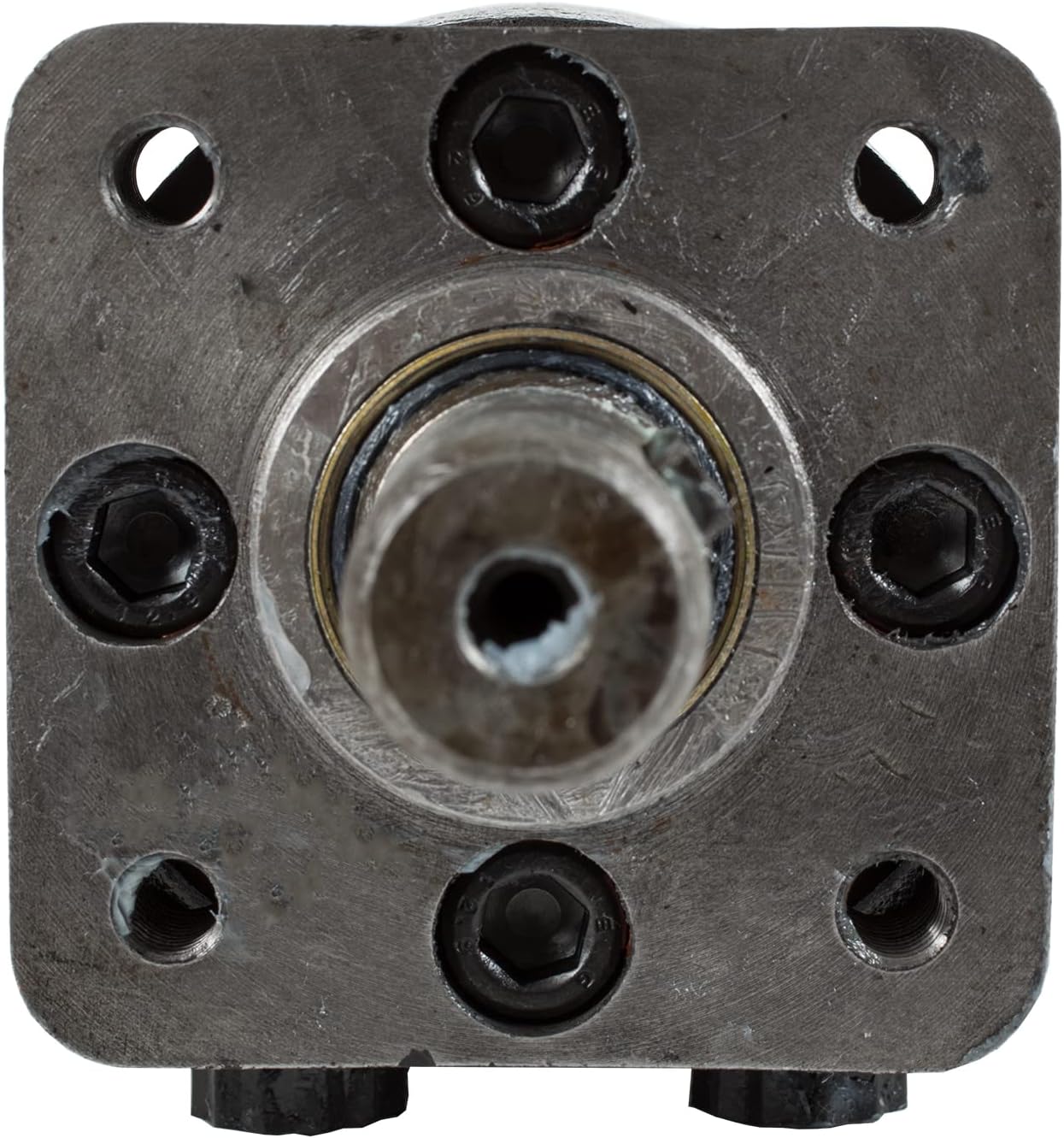

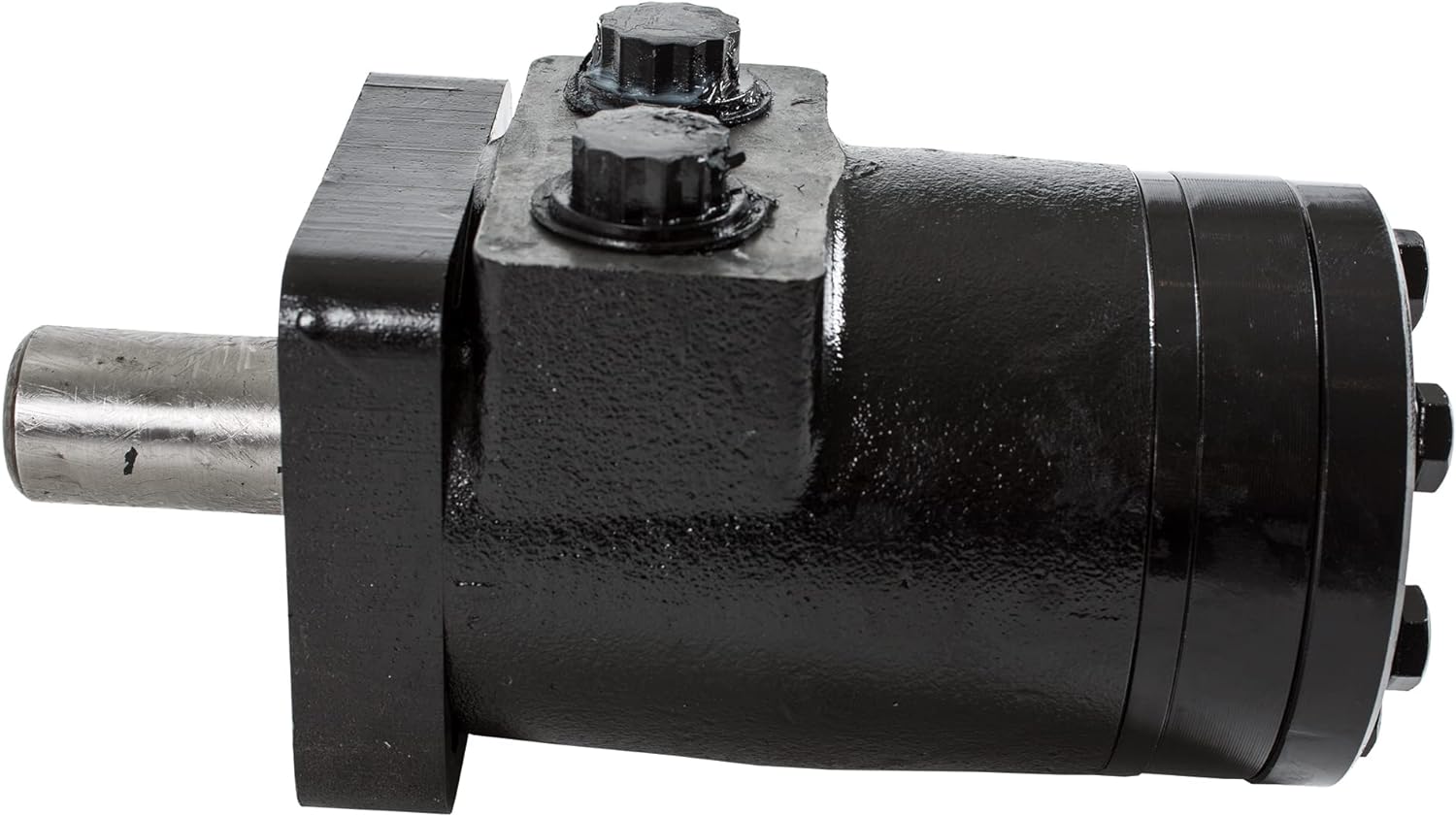

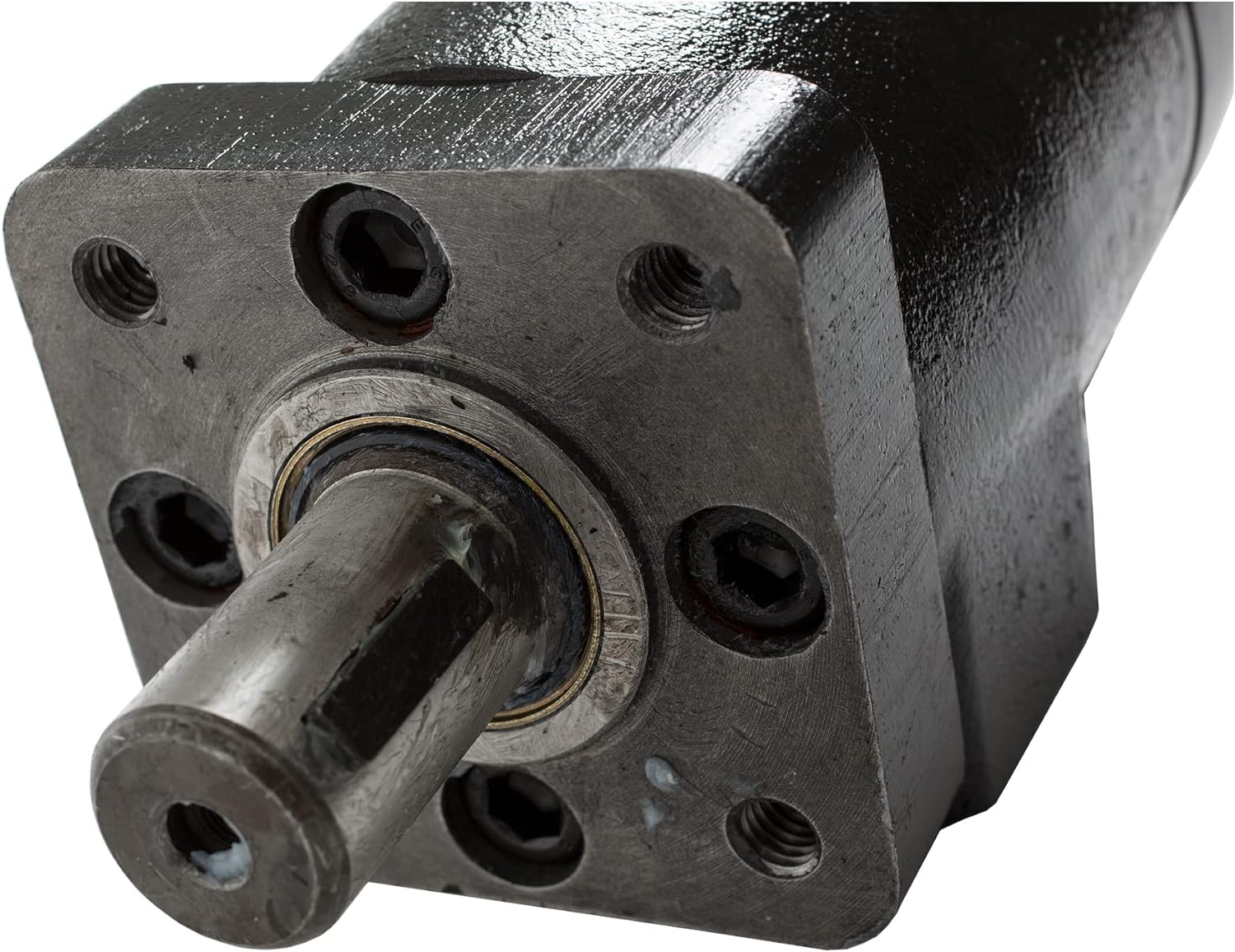

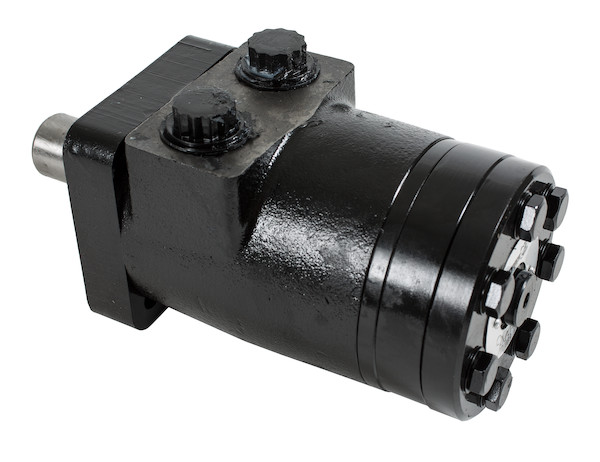

Buyers CM034P HydraStar Hydraulic Salt Spreader Gear Box Auger Motor (4 Bolt 7.3 CIPR) - Replaces Meyer 61353
Buyers CM034P HydraStar Hydraulic Salt Spreader Gear Box Auger Motor (4 Bolt 7.3 CIPR) - Replaces Meyer 61353
Attention Customers:
The items we have listed for pop up campers are the only items we have available. We are not able to special order any items at this time, and we are unable to provide technical assistance due to high order volume.
For product availability, please text (855) 432-6357 with the vendor number and quantity you are looking for. We will answer ASAP.
HydraStar® motors are economical, efficient, small, compact, and powerful. They are designed for medium-duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, they have a wide variety of mounting flanges with a 1 inch diameter straight shaft, woodruff keyway, and 1/2" NPT port which all provide design flexibility. The direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor and equipment can be driven direct which helps eliminate costly mechanical components.
Product Features and Specs
- Displace cm3/r [in3/r]: 97 [5.9]
- Max Speed (RPM) @ Continuous Flow: 585
- FLOW LPM [GPM]
- Continuous: 57 [15]
- Intermittent: 68 [18]
- Torque LPM [lb-in]
- Continuous: 155 [1368]
- Intermittent: 207 [1829]
- Min. Starting Torque Nm [lb-in]
- @ Cont. Pressure: 124 [1100]
- @ Int. Pressure: 171 [1510]
- Difference between inlet and outlet port
- Continuous: 124 [1800]
- Intermittent: 165 [2400]
Cross over list (part numbers that this part replaces):
- Charlynn #: 101-1003 with 7.3 Displace
- TRW Ross #: MG-06-13-10 with 6.0 Displace
- Prince Adan #: ADM1004RP with 6.07 Displace
- Orbmark #: HD108W4FSWP with 6.2 Displace
- White #: RS-06-0101 with 6.4 Displace
