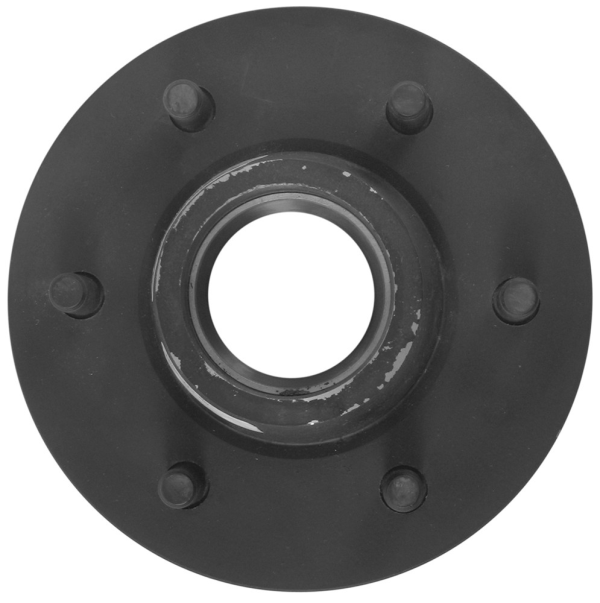

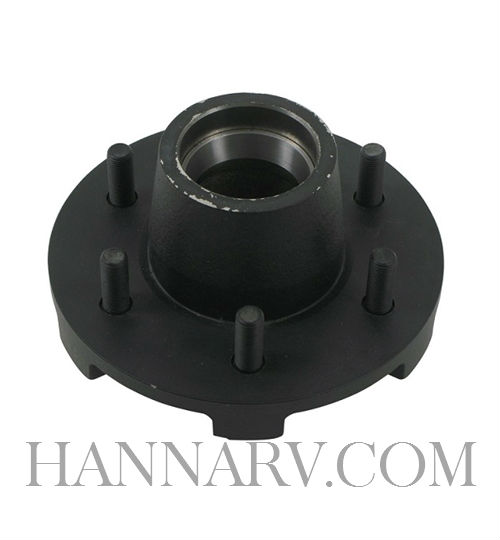

Dexter 42655 Painted Hub Only - 6 on 5.5 - 25580/15123 - For 6000 Lbs Axles - 2.25 Inch Inner Grease Seal
There is no need to worry about the races as they are already pressed into the hub for you. This hub is designed for use with a #42 spindle. Each hub has a capacity of 3,000lbs. The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately. Kit with hardware is available.
Product Specs
- Painted Hub
- 25580 Inner / 15123 Outer Bearings
- Capacity of 3,000 lbs. per each
- Fits 6,000 lb. axles
- For Spindles 2 1/4” I.D. Grease Seal
- Std. Grease
- For Idler applications only.
- Std. Paint Finish
- 6 on 5.5" Bolt pattern
- 1x 15245 Outer Race (Already Pressed In) 2.441" OD
- 1x 25520 Inner Race (Already Pressed In) 3.265" OD
- Uses 25580(1.75" ID) and 15123(1.25" OD) bearings(sold separately)
To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.
Prop. 65 Warning for California Residents
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
